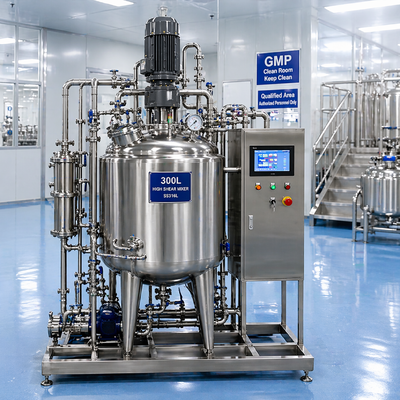

Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | CHONGYANG |
| Сертификация: | ISO,CE |
| Номер модели: | CY-SPS-500L |
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Экспорт стандартной деревянной коробки |
| Время доставки: | 15 дней |
| Условия оплаты: | Т/Т, Л/К |
| Поставка способности: | 100 комплектов/месяц |
|
Подробная информация |
|||
| Емкость: | 300л/500л/1000л/2000л/3000л/на заказ | Материал: | SS316L (детали, контактирующие с продуктом), SS304 (рама) |
|---|---|---|---|
| Поверхностная обработка: | Внутренний Ra ≤0,4 мкм, внешний матовый/полированный | Система управления: | Автоматическое управление ПЛК с сенсорным экраном (опция Siemens/Schneider) |
| Функция: | Рубашка для смешивания, нагрева и охлаждения, система очистки CIP/SIP | Приложение: | Фармацевтика / Биофармацевтика / Косметика / Пищевая промышленность |
Характер продукции
Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
1. Product Name
Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
2. Product Overview
The 1500L Automated Solution Preparation System is designed for large-scale hygienic liquid mixing and preparation. Equipped with full automatic PLC control and integrated CIP/SIP capabilities, the system ensures consistent product quality, repeatable operation, and efficient cleaning/sterilization cycles.
Constructed with SS316L contact parts and a sanitary design, it meets high cleanliness standards and is suitable for continuous and batch processing applications.
3. Applications
- Biotech liquid preparation
- Cosmetic production lines
- Food & beverage processing
- Chemical liquid blending
- High-standard industrial liquid systems
4. Process Flow Diagram
→ Heating/Cooling Jacket → Circulation Loop → Filtration Unit
→ CIP/SIP Cleaning → Storage / Transfer
Process Description:
Water and materials are introduced into the mixing tank through automated dosing. The agitator ensures homogeneous mixing. Temperature control is achieved via the jacket system. The solution is circulated, filtered, and transferred. CIP/SIP systems ensure internal cleanliness and sterilization without dismantling.
5. Key Features
- SS316L contact surfaces with hygienic design
- Full automatic PLC control with touch screen interface
- Integrated CIP & SIP system for cleaning and sterilization
- Optional heating and cooling jacket
- High-efficiency mixing with variable speed agitator
- Closed system design to reduce contamination risk
- Skid-mounted compact structure for easy installation
6. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 1500 L |
| Contact Material | SS316L |
| External Material | SS304 |
| Surface Finish | ≤0.8 μm (≤0.6 / ≤0.4 μm optional) |
| Mixing Type | Top-mounted agitator |
| Mixing Speed | 0–60 rpm (adjustable) |
| Heating/Cooling | Jacketed tank |
| Control System | PLC + HMI (full automatic) |
| Cleaning System | CIP + SIP integrated |
| Working Pressure | 0–0.3 MPa |
| Design Temperature | -10°C to 120°C |
| Power Supply | 220V / 380V, 50/60 Hz |
| Installation | Skid-mounted |
| Design Standard | GMP-oriented, ISO |
7. Configuration List
| Component | Description |
|---|---|
| Mixing Tank | 1500L SS316L vessel with manway |
| Agitator | Top-mounted variable speed |
| Jacket System | Heating/cooling jacket |
| Control Panel | PLC with touch screen |
| CIP System | Automatic cleaning unit |
| SIP System | Steam sterilization system |
| Valves | Sanitary diaphragm valves |
| Piping | SS316L hygienic piping |
| Pump | Circulation/transfer pump |
| Filter Unit | Cartridge/membrane filtration |
| Sensors | Temperature, pressure, level |
| Platform | Stainless steel skid frame |
8. Project Cases
Case 1 – Southeast Asia Industrial Facility
A 1500L automated system improved production efficiency and reduced manual operation through PLC control and automated cleaning cycles.
Case 2 – Middle East Cosmetic Plant
Integrated CIP/SIP system ensured high hygiene levels and reduced downtime between batches.
9. Certifications & Standards
- GMP-oriented design principles
- ISO 9001 Quality Management
- Hygienic piping and sanitary fittings
- Optional compliance with FDA / WHO guidelines
10. FAQ
Q1: Is the system fully automatic?
Yes, it is equipped with PLC control and touch screen operation.
Q2: What is the advantage of CIP/SIP?
It enables automatic cleaning and sterilization without dismantling, saving time and ensuring hygiene.
Q3: Can the system be customized?
Yes, capacity, configuration, and automation level can be tailored.
Q4: Does it support temperature control?
Yes, jacket heating and cooling options are available.
Q5: Is installation support available?
Yes, global installation and commissioning services are provided.
