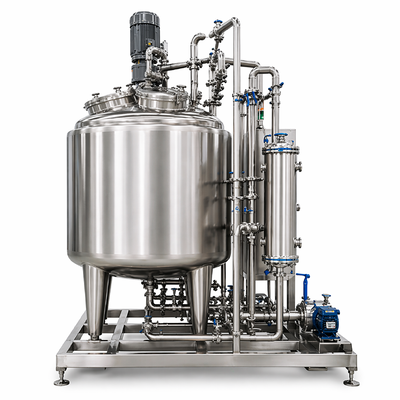

Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | CHONGYANG |
| Сертификация: | ISO,CE |
| Номер модели: | CY-SPS-500L |
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Экспорт стандартной деревянной коробки |
| Время доставки: | 15 дней |
| Условия оплаты: | Т/Т, Л/К |
| Поставка способности: | 100 комплектов/месяц |
|
Подробная информация |
|||
| Емкость: | 300л/500л/1000л/2000л/3000л/на заказ | Материал: | SS316L (детали, контактирующие с продуктом), SS304 (рама) |
|---|---|---|---|
| Поверхностная обработка: | Внутренний Ra ≤0,4 мкм, внешний матовый/полированный | Система управления: | Автоматическое управление ПЛК с сенсорным экраном (опция Siemens/Schneider) |
| Функция: | Рубашка для смешивания, нагрева и охлаждения, система очистки CIP/SIP | Приложение: | Фармацевтика / Биофармацевтика / Косметика / Пищевая промышленность |
Характер продукции
Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
1. Product Name
Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
2. Product Overview
The 800L Mixing Solution Preparation System is engineered for hygienic liquid blending and preparation in controlled production environments. With SS316L contact surfaces and a sanitary design, it provides excellent corrosion resistance, easy cleaning, and stable product quality.
Equipped with a variable speed agitator, the system allows precise adjustment of mixing intensity to suit different process requirements. Its compact skid-mounted structure ensures easy installation and integration into existing lines.
3. Applications
- Biotech liquid preparation
- Cosmetic liquid mixing
- Food & beverage blending
- Chemical liquid processing
- Laboratory and pilot-scale production
4. Process Flow Diagram
→ Heating/Cooling Jacket → Circulation Loop → Filtration Unit → Storage / Transfer
Process Description:
Water and raw materials are fed into the mixing tank through a controlled dosing system. The variable speed agitator ensures uniform mixing. Temperature is maintained via an optional jacket system. The solution is circulated, filtered, and transferred to storage or downstream processes.
5. Key Features
- SS316L contact parts with sanitary design
- Variable speed agitator for flexible operation
- Smooth internal surface (Ra ≤ 0.4 μm optional)
- Optional heating and cooling jacket
- Stable and uniform mixing performance
- CIP-ready for efficient cleaning
- Skid-mounted compact structure
6. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 800 L |
| Contact Material | SS316L |
| External Material | SS304 |
| Surface Finish | ≤0.8 μm (≤0.6 / ≤0.4 μm optional) |
| Mixing Type | Top-mounted agitator |
| Mixing Speed | 0–60 rpm (variable) |
| Heating/Cooling | Jacket (optional) |
| Control System | Manual / PLC optional |
| Cleaning System | CIP ready |
| Working Pressure | 0–0.3 MPa |
| Design Temperature | -10°C to 120°C |
| Power Supply | 220V / 380V, 50/60 Hz |
| Installation | Skid-mounted |
| Design Standard | GMP-oriented, ISO |
7. Configuration List
| Component | Description |
|---|---|
| Mixing Tank | 800L SS316L vessel with manway |
| Agitator | Variable speed top-mounted mixer |
| Jacket System | Heating/cooling jacket (optional) |
| Control Panel | Manual or PLC control |
| Valves | Sanitary diaphragm valves |
| Piping | SS316L hygienic piping |
| Pump | Circulation/transfer pump |
| Filter Unit | Optional filtration system |
| Sensors | Temperature, pressure, level |
| CIP Interface | Cleaning ports |
| Frame | Stainless steel skid base |
8. Project Cases
Case 1 – Southeast Asia Cosmetic Facility
An 800L system improved mixing consistency and reduced batch variation through adjustable speed control.
Case 2 – Middle East Food Processing Line
System ensured stable blending of liquid ingredients, improving overall production efficiency.
9. Certifications & Standards
- GMP-oriented design principles
- ISO 9001 Quality Management
- Hygienic piping and sanitary fittings
- Optional compliance with FDA / WHO guidelines
10. FAQ
Q1: Can the mixing speed be adjusted?
Yes, the system features a variable speed agitator for flexible operation.
Q2: Is the system customizable?
Yes, capacity, configuration, and control options can be tailored.
Q3: Does it support temperature control?
Yes, optional heating and cooling jacket is available.
Q4: Is automatic control available?
Yes, PLC control with touch screen can be integrated.
Q5: Does the system support cleaning?
Yes, it is designed with CIP-ready connections.
11. CTA (Call To Action)
Looking for a reliable 800L mixing solution preparation system?
Contact us for a customized design and quotation.
